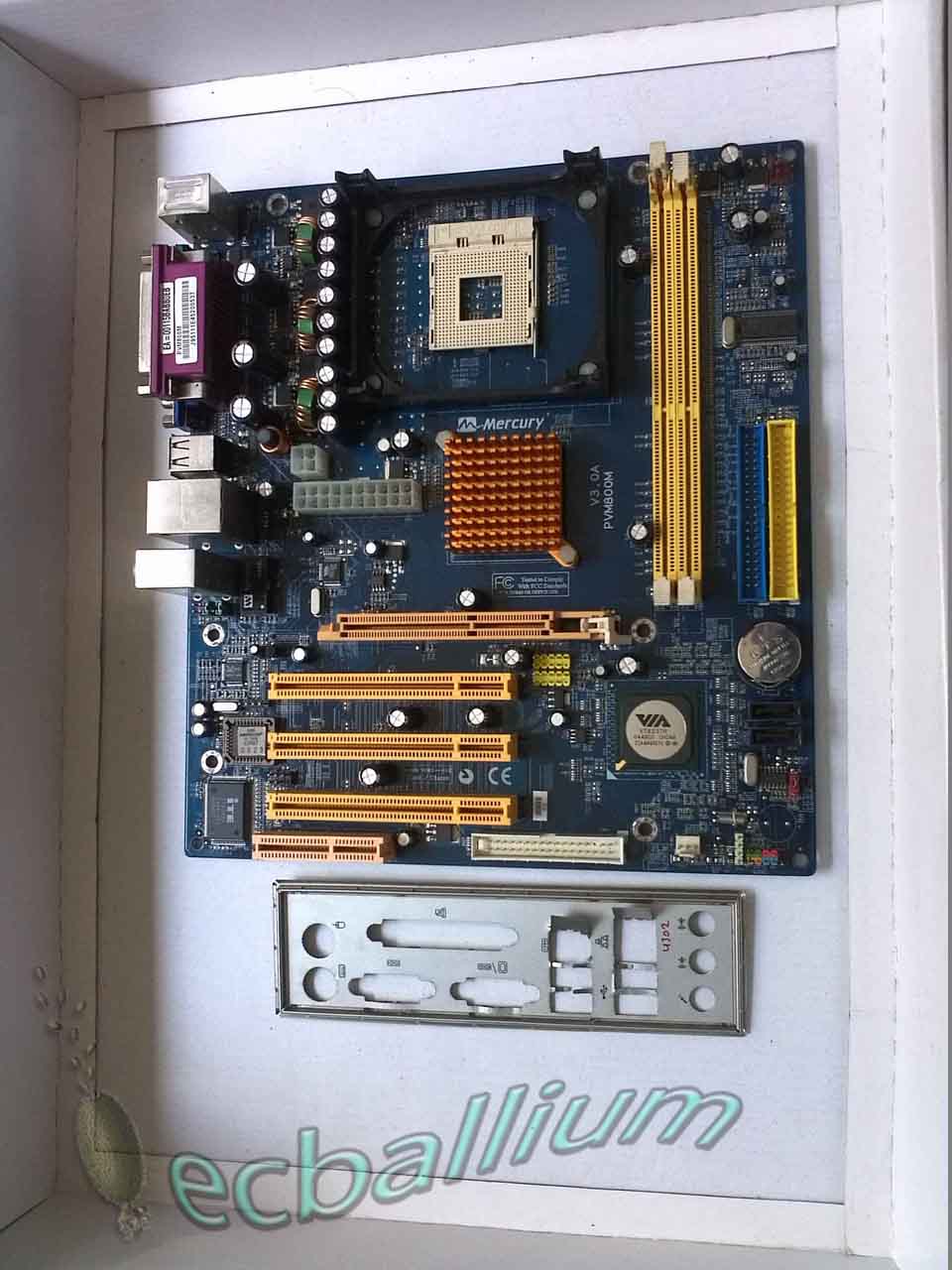

MERCURY PVM800M V3.0A DDR400 AGP 8X ANAKART
#1


MERCURY PVM800M V3.0A DDR400 ANAKART

478 Pin
2 sata, 3 PCI , 2 DDR400 SLOT
BİOS güncel. ayna var.

stok:1 adet

fiyat: 145 tl






Intel Pentium 4 processor (478 pins) Mainboard with VIA PM800/8237 chipset

Processors- Socket 478 for Intel Pentium 4, Prescott processor- FSB: 800  MHz

Chipset- VIA PM800/8237

VGA- Embedded UniChromeII Graphics with 64M share memory

Memory- 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs

(DDR 400 )– Maximum: 2GB

Expansion Slots

– 1 x AGP8X

– 3 x PCI

– 1 x CNR

LAN- VIA VT [TL_HIDDEN] Mbps Fast Ethernet PHY

Audio

– Realtek ALC655 6-channel audio Codec

– Compliant with AC97 2.3 specification

IDE- 2 x Ultra DMA 133/100/66

FDD- 360K~2.88M Byte, 3 Mode FDDs or LS120

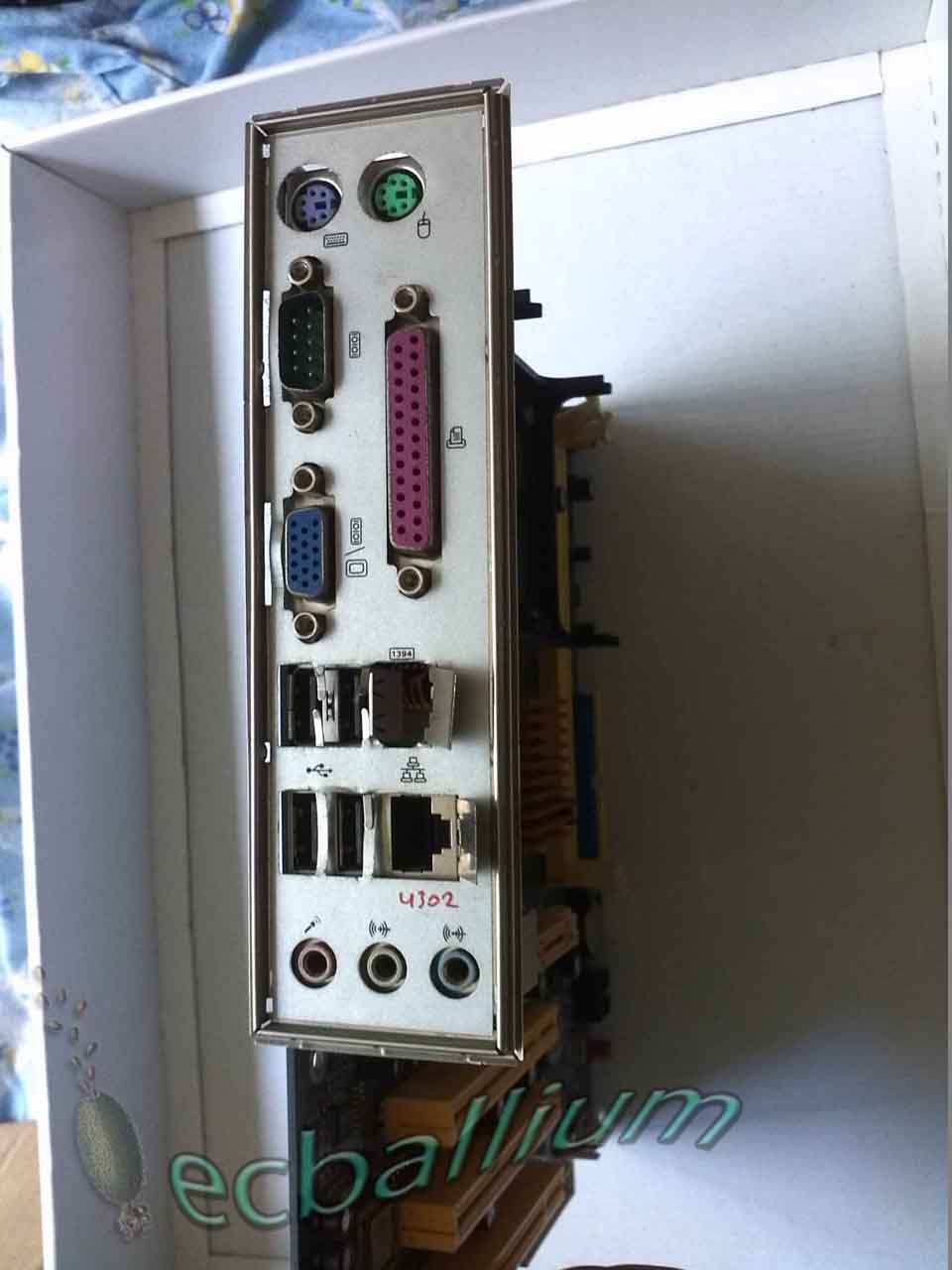

Back Panel I/O Ports

– 1 x PS/2 keyboard

– 1 x PS/2 mouse

– 1 x Parallel Port

– 1 x Serial Port

– 1 x VGA Port

– 4 x USB 2.0 Ports

– 1 x RJ 45 Port

– 1 x Audio I/O (Line-in, Line-out and Mic-in)



Internal I/O Connectors & Headers

– 20-pin ATX Power Supply connector

– 4-pin ATX 12V Power Supply connector

– 2 x USB header support additional 4 USB2.0 ports

– 2 x Serial ATA connectors

– 1 x Front panel switch/LED header

– 1 x Front panel audio header

– CPU / SYS FAN headers

– 1 x IrDA for SIR header

– 1 x Speaker header

– 1 x CD in header

– 1 x USB card reader header



System BIOS

– AMI 4Mb LPC Flash ROM

– Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

– Full support for ACPI revision 1.0 specification


Form Factor- Micro ATX Form Factor, 244x220mm
+90505 403 35 80 Hemen kargoya verilir.  mikail1313@gmail.com
TR22 0003 2000 0000 0053 4812 51 Mustafa KEPEK Montaj yapılır.
Sultangazi-Bayrampaşa-Topkapı-Metrobüs teslim edilir.
