ASUS M2N68-AM SE2 Soket AM2 - GeForce 7025
940 pin DDR2 Anakart

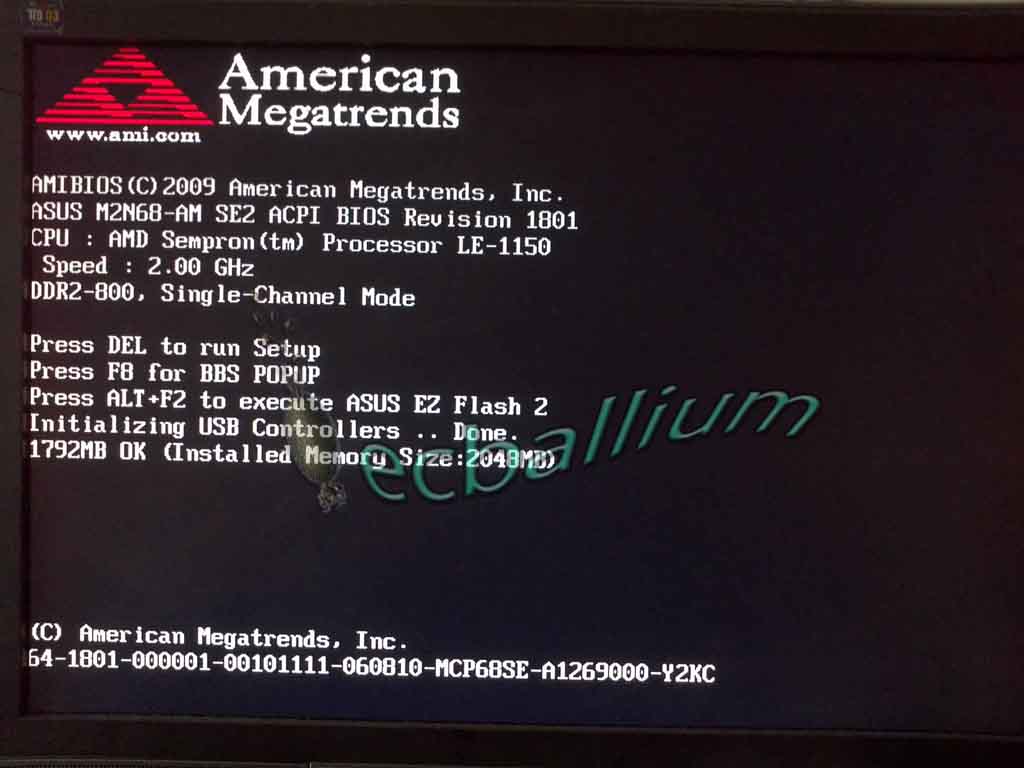

Sorunu yoktur. Güncel 1801 biosu ile Phenom II işlemcileri de açar.
Aynası mevcut. Adresinizde (sultangazi, bayrampaşa, topkapı vs)
Ücretsiz montaj yapılır. Şu an bu anakarttan giriyorum ilanı..Nforce tek çip olduğu için süper hızlı.
SATILDI
SPECS
GENERAL
Chipset Type NVIDIA GeForce 7025 / nForce 630a
Compatible Processors Athlon 64, Sempron, Phenom II X3, Athlon 64 X2, Athlon X2, Phenom X4, Phenom X3, Phenom II X4
Processor Socket Socket AM2
Max Bus Speed 1000 MHz
Max Processors Qty 1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots 1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
1 x PCIe x1
1 x PCI
Interfaces 1 x PS/2 keyboard
1 x PS/2 mouse
1 x VGA
1 x serial
1 x LAN
4 x USB 2.0
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (side surround) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
Storage Interfaces SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / JBOD
ATA-133 -connectors: 1 x 40pin IDC - 2 devices
Internal Interfaces 1 x audio - 4 pin MPC
Additional Connectors (Optional) 6 x USB 2.0
Power Connectors 4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty 1
Installed Qty 0
AUDIO
Audio Codec Realtek ALC662
Compliant Standards High Definition Audio
MEMORY
Memory Allocation Technology shared video memory (UMA)
MISCELLANEOUS
Microsoft Certifications Compatible with Windows 7
Product Type motherboard
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsofts assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
PROCESSOR / MEMORY / STORAGE
Max Supported Qty 1
NETWORKING
Data Link Protocol Ethernet, Fast Ethernet
Network Controller Realtek RTL8201CP
Network Ethernet
INTERFACE PROVIDED
Qty 1, 4
Type LAN, PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone, serial
Connector Type mini-jack
GRAPHICS
Graphics Controller NVIDIA GeForce 7025
Memory Allocation Technology Shared video memory (UMA)
AUDIO OUTPUT
Sound Output Mode 5.1 channel surround
Compliant Standards High Definition Audio
Type sound card
Audio Codec Realtek ALC662
Audio High Definition Audio (6-channel)
RAM
Max Supported Size 4 GB
Features dual channel memory architecture
VIDEO
Video Output graphics adapter
Graphics Processor NVIDIA GeForce 7025
LAN
Network Interfaces Ethernet
Network Controller Realtek RTL8201CP
SUPPORTED RAM
Bus Clock 1066 MHz, 800 MHz, 667 MHz
Features Dual channel memory architecture
Registered or Buffered Unbuffered
Speed PC2-8500, PC2-6400, PC2-5300
Technology DDR2
Max Size 4 GB
Supported RAM Integrity Check Non-ECC, ECC
HEADER
Brand ASUS
Product Line ASUS
Model M2N68-AM SE2
Packaged Quantity 1
Compatibility PC
MAINBOARD
Form Factor micro ATX
Processor Socket Socket AM2
Compatible Processors Athlon 64, Athlon 64 X2, Athlon X2, Phenom II X3, Phenom II X4, Phenom X3, Phenom X4, Sempron
Data Bus Speed 1000 MHz
Chipset Type NVIDIA GeForce 7025 / nForce 630a
Supported RAM Technology DDR2 SDRAM
Supported RAM Speed 1066 MHz, 667 MHz, 800 MHz
Supported RAM Standard PC2-5300, PC2-6400, PC2-8500
Supported RAM Integrity Check ECC, non-ECC
Supported RAM (Registered or Buffered) unbuffered
RAM Slots 2 DIMM slots
Power Connectors 24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS Type AMI
BIOS Features ACPI 2.0 support, ASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, SMBIOS 2.5 support, WfM 2.0 support
Hardware Features AMD Cool 'n' Quiet Technology, ASUS Q-Fan, CrashFree BIOS 3, audio jack detect technology
INTERFACES
Storage ATA-133, Serial ATA-300 (RAID)
EXPANSION SLOTS
Total Qty 1, 2
Type CPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
SOFTWARE
Software Included ASUS Live Update, ASUS PC Probe 2, drivers & utilities
DIMENSIONS & WEIGHT
Width 9.6 in
Depth 8 in
VIDEO MEMORY
Memory Allocation Technology shared video memory (UMA)
STORAGE INTERFACES
Interface ATA-133, Serial ATA-300
Connector(s) 1 x 40pin IDC, 2 x 7pin Serial ATA
Supported Devices Qty 2
RAID (Level) RAID 0 / RAID 1 / JBOD
INTERNAL INTERFACES
Type audio
Connector Type 4 pin MPC
Qty 1
FEATURES
BIOS Type AMI
Hardware Features ASUS Q-Fan, AMD Cool 'n' Quiet Technology, CrashFree BIOS 3, audio jack detect technology
BIOS Features DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ACPI 2.0 support, ASUS EZ Flash 2, SMBIOS 2.5 support
GENERAL
ManufacturerAsus
